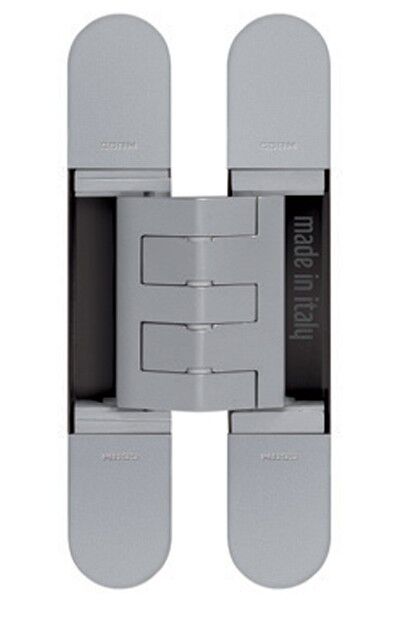

CEAM BAC1431SN 3D Adjustable Concealed Door Hinge - Model 1431 - Satin Nickel
The CEAM BAC1431 is a heavy-duty 3D adjustable concealed hinge for large architectural doors. It combines a concealed installation with substantial load capacity and precise adjustment, making it suitable for residential, commercial and industrial projects.
Product Specifications:
- Maximum Door Weight: 175kg
- Load Capacity: Up to 170kg at 800mm wide door, subject to door specifications and hinge quantity
- Minimum Door Thickness: 38mm
- Overall Length: 180mm
- Width: 32mm
- Rebate Depth: 21mm
- Narrow Timber Rebate: 29mm
- Gap When Closed: 2mm
- Working Aperture: 180 degrees
- Adjustment: 3D adjustable S.T.A.R.S. system
- Quick Release: CEAM quick release system
- Material: Die Cast
- Applications: Internal and external locations under cover; residential, commercial and industrial
- Manufacture: 100% Made in Italy
- Finish: Satin Nickel
For detailed technical information, please refer to the Product Brochure below.
| SKU | BELBAC1431SN |
| Brand | Bellevue |
| Finish | Satin Nickel |
