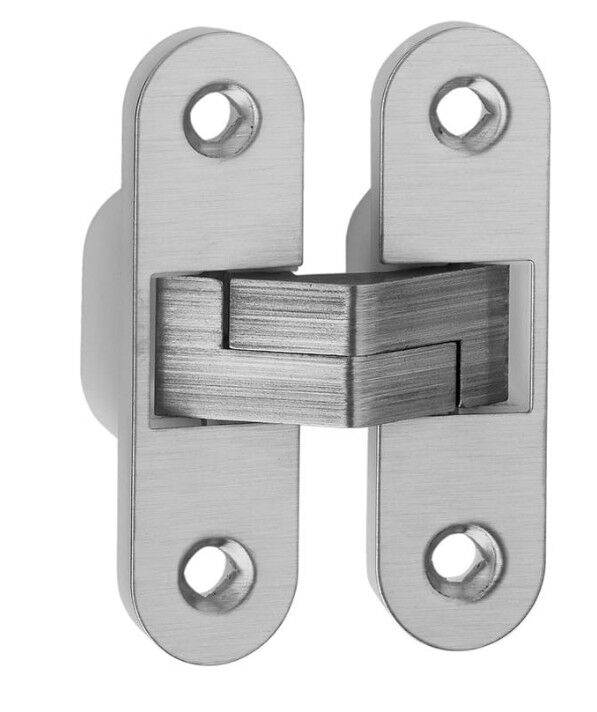

CEAM BAC2010SS 2D Concealed Door Hinge - Model 2010 - 304 Satin Stainless Steel
The CEAM BAC2010 is a fully concealed hinge designed to create a clean door-to-wall appearance without visible butt hinges or pivot hardware. Manufactured from 304 grade stainless steel and industrial-strength nylon, it is suitable for internal and external applications.
Product Specifications:
- Maximum Door Weight: 60kg, subject to door size and hinge quantity
- Minimum Door Thickness: 31mm
- Narrow Timber Rebate: 27.5mm
- Gap When Closed: 2mm
- Working Aperture: 180 degrees
- Reliability: Certified to over 100,000 opening and closing cycles
- Material: 304 Grade Stainless Steel and Industrial Nylon
- Adjustment: Concealed installation with adjustable positioning
- Applications: Internal and external locations under cover; residential, commercial and industrial
- Manufacture: 100% Made in Italy
- Finish: Satin Stainless
For detailed technical information, please refer to the Product Brochure below.
| SKU | BELBAC2010SS |
| Brand | Bellevue |
| Finish | Satin Stainless Steel |
