FritsJurgens FJS/STM+70GSSS System M+G - 70mm Minimum Pivot Point - Squared Floor Plate - Satin Stainless Steel Finish
FritsJurgens System M+ 70mm Class G Pivot Door System - Square Floor Plate - Stainless Steel
The FritsJurgens System M+ is a fully concealed, self-closing pivot door system designed to provide smooth, controlled hydraulic door movement with extensive adjustment while the door is installed. This configuration uses a 70mm pivot point and Class G load capacity, making it suitable for architectural pivot doors in residential, commercial and hospitality applications.
System M+ incorporates FlowMotion technology with independent Damper Control, 30 degree Speed Control and Latch Control. These functions provide hydraulic backcheck and wall protection, controlled closing speed through the final 30 degrees, and additional acceleration near the closed position to help the door latch correctly. The system supports single-action and double-action doors and can be used with locks, latches and electric strikes.
Dimensions & Product Details:
- Pivot Configuration: 70mm
- Weight Class: Class G - up to 500 kg
- Bottom Pivot Dimensions: 308.2 x 42 x 112.7mm
- Pivot Point: From 70mm to middle placement
- Floor Plate: Square floor plate
- Finish: Stainless steel
- Minimum Door Thickness: 40mm for Classes AA-E; 50mm for Classes F-G
- Hold Positions: 0 degrees, 90 degrees and -90 degrees for double-action doors; 0 degrees and 90 degrees for single-action doors
- Self-closing: From up to 125 degrees to the closed position

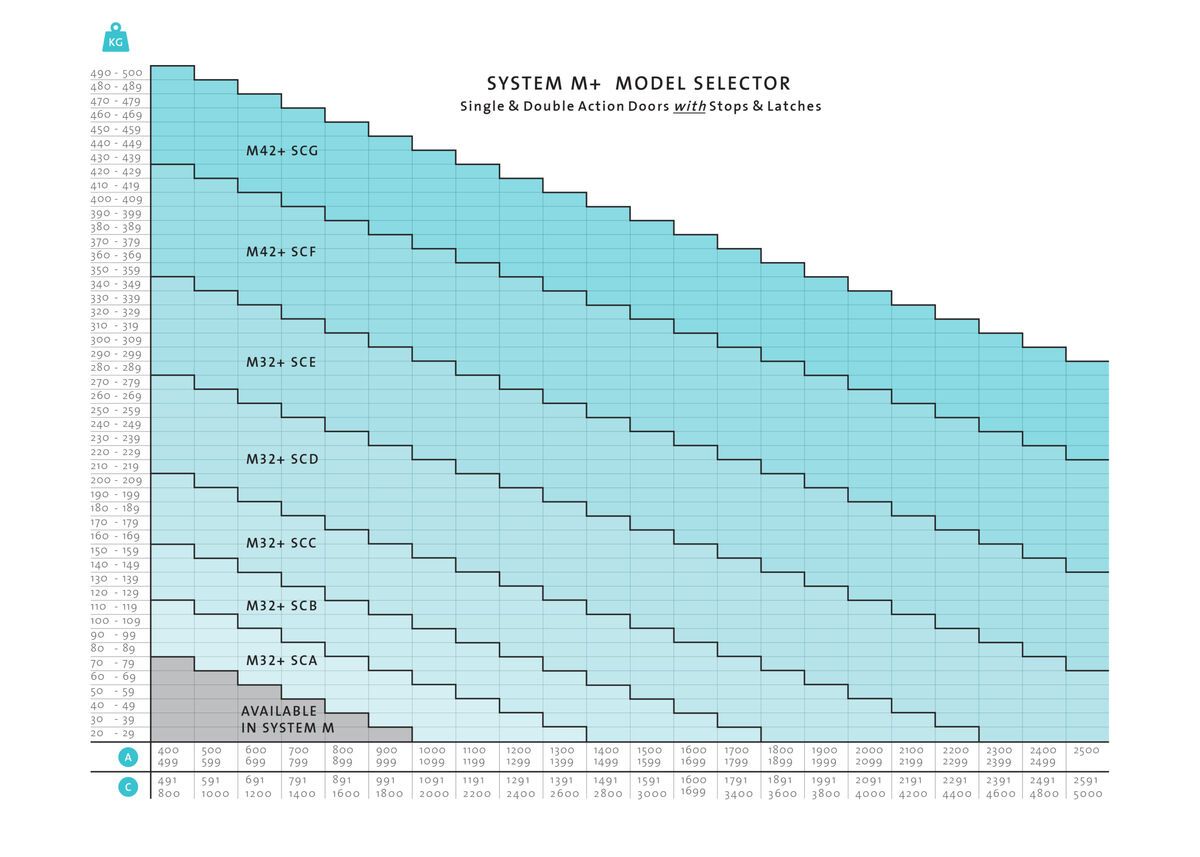

- Door Width: 400-5000mm, subject to model selection and door weight
- Door Height: Unrestricted, subject to the applicable configuration
- Tested and guaranteed to 1,000,000 cycles
- Made in the Netherlands
- 10-year manufacturer guarantee
Floor Plate Option:
- Standard Square Floor Plate: 80 x 40 x 9mm with radial adjustment
- Flush Square Floor Plate: 80 x 40 x 11mm with 7mm undercut, suitable where the plate is recessed into the sill or threshold
| SKU | BELFJSSTM70GSSS |
| Brand | Bellevue |
| Finish | Satin Stainless Steel |
