FritsJurgens FJS/STONE70GSNSS System One - 70mm Pivot Point - Non-Adjustable Narrow Floor Plate - Satin Stainless Steel Finish
FritsJurgens System One 70mm Pivot Point - Non-Adjustable Narrow Floor Plate - Satin Stainless Steel

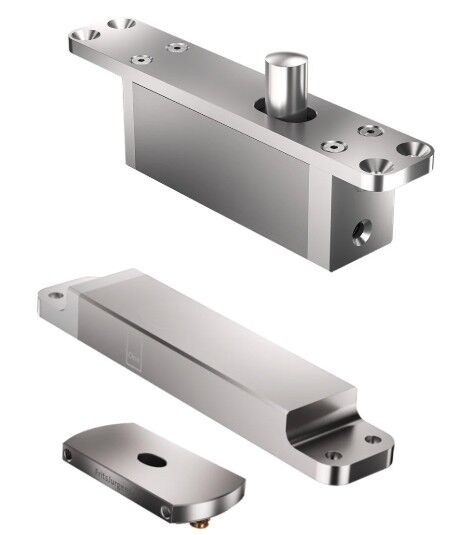

The FritsJurgens System One is a compact, fully concealed free-swinging pivot door system designed around a single pivot point. It is particularly suited to narrow-profile doors and architectural applications where a discreet hinge solution is required without a conventional floor closer.
System One allows the door to rotate freely without self-closing or damping. Depending on the door arrangement, it can provide 360 degree revolving movement, 180 degree double-action movement or 90 degree single-action movement. The system is installed within the door with only the compact floor and ceiling plates visible.
Dimensions & Product Details:
- Pivot Point: 70mm
- Floor Plate: Standard square floor plate
- System One Component Dimensions: 160 x 32 x 39mm
- Maximum Door Weight: Up to 500 kg
- Door Width: Unlimited, subject to door weight and configuration
- Door Height: Unlimited
- Minimum Door Thickness: 40mm
- Door Movement: 360 degree free swing, 180 degree double-action or 90 degree single-action
- Finish: Satin stainless steel
- Material: Stainless steel and anodised aluminium
- Corrosion Resistance: EN 1670 Class 5
- Floor And Ceiling Plates: Series 420 stainless steel
- Supplied as a complete pivot set with required primary components and fixings
- Manufactured by FritsJurgens in the Netherlands
| SKU | BELFJSSTONE70GSNSS |
| Brand | Bellevue |
| Finish | Satin Stainless Steel |
